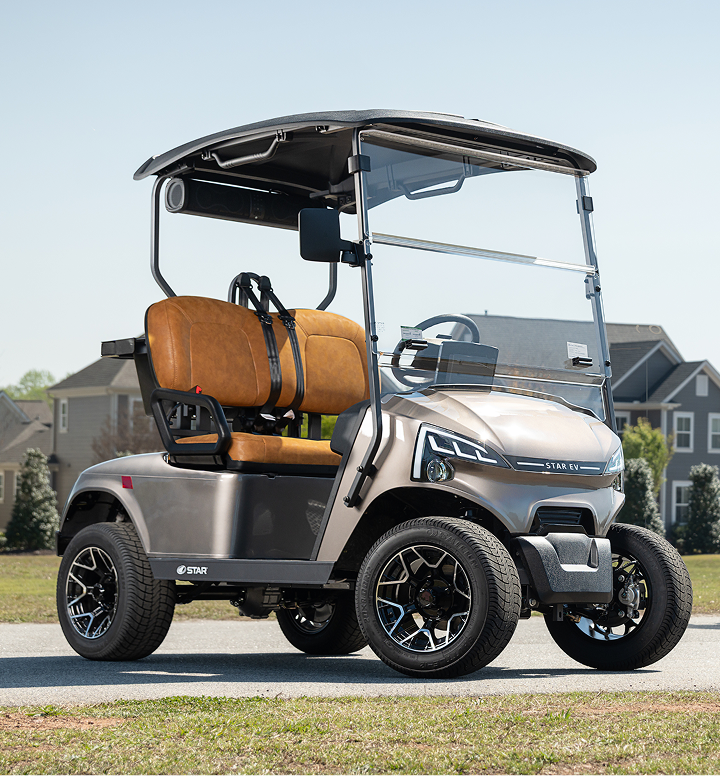

J-Plus
25 Mph
street-legal top speed, 19.5 mph without
5-10 Hr
Charge time on a standard household outlet
34 Miles
Maximum range per charge

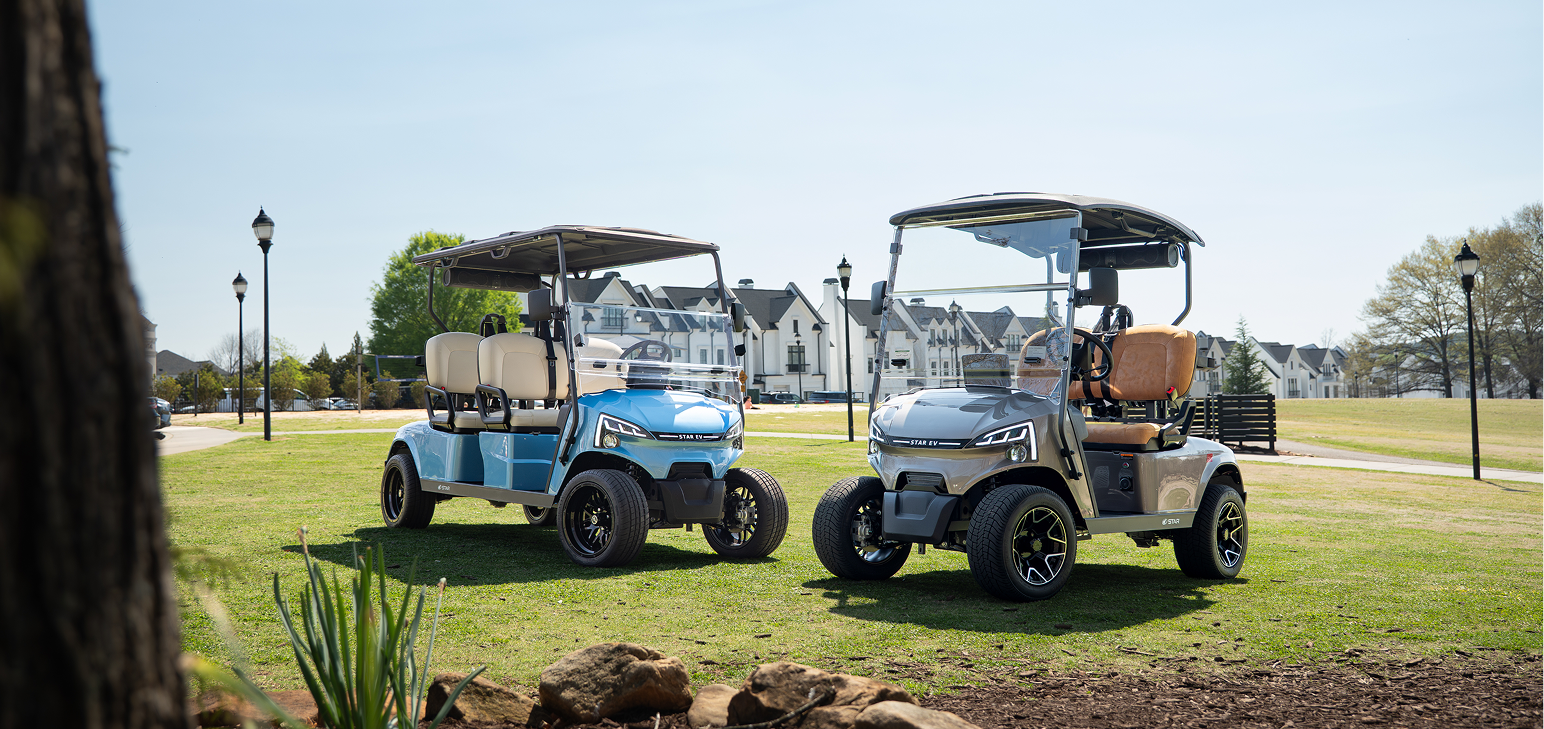

2, 4, 6P
Lifted & un-lifted passenger configurations
6 Colors
From sky blue, to pepper gray, black, and white
Configure Yours
Online sales are currently live in KS, KY, NJ, OK, OR, SC, TN and TX. If ordering outside of these areas find your nearest dealer to try in-person.
For Seamless Daily Drives
Stylish, modern design + smooth electric performance
Street-ready safety, compliance, and more
Lifestyle focused: perfect for family, friends, and solo drivers
Standard in every model
Automotive paint and finishing
Safety seatbelts

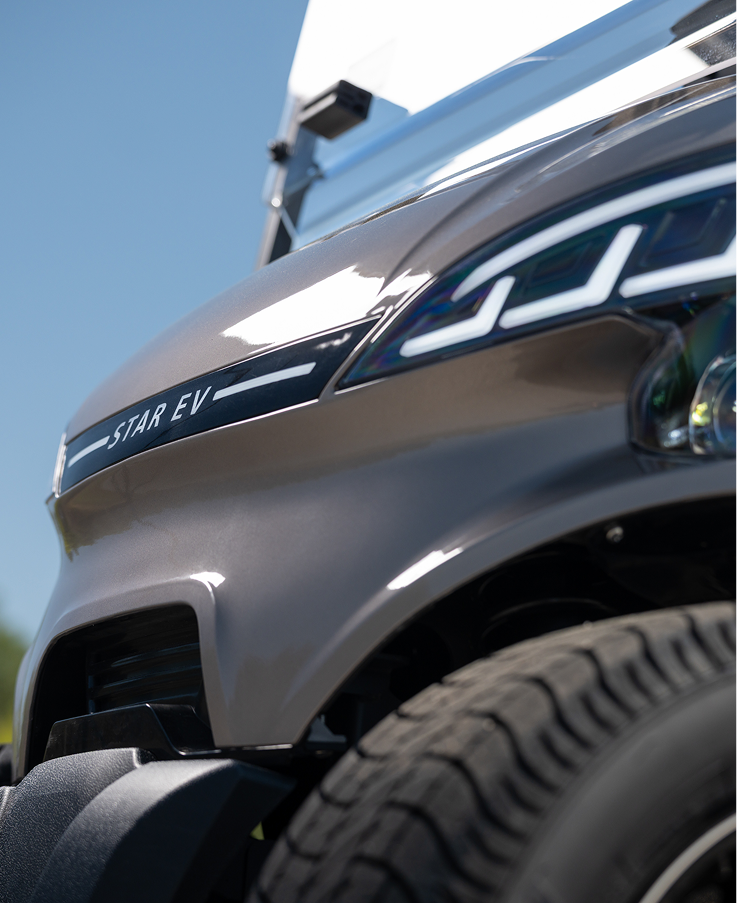

LED headlights, high and low beam, tailights
Flip seat with storage trunk
Injection molded roof with grab handles
Side mirrors
Aluminum rocker panels

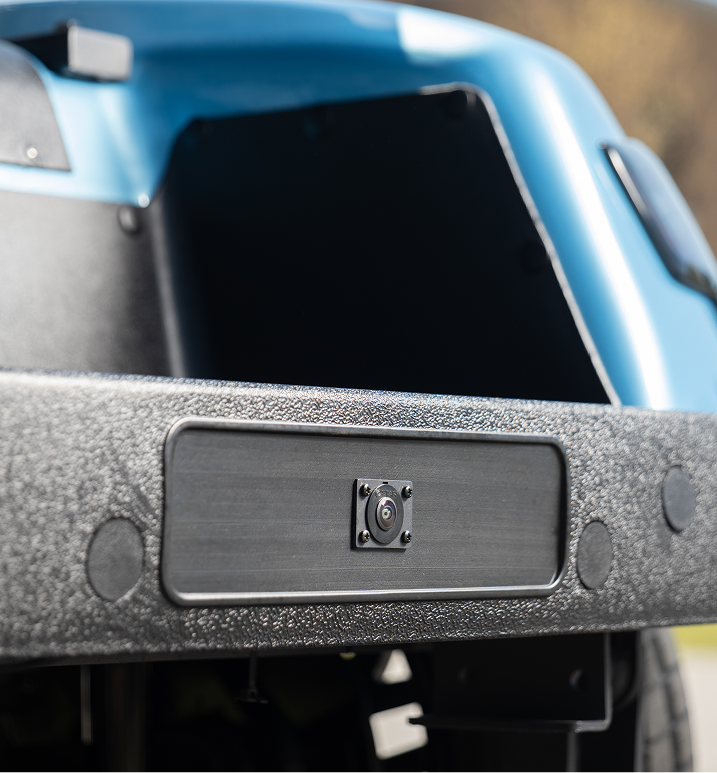

10" display with backup camera

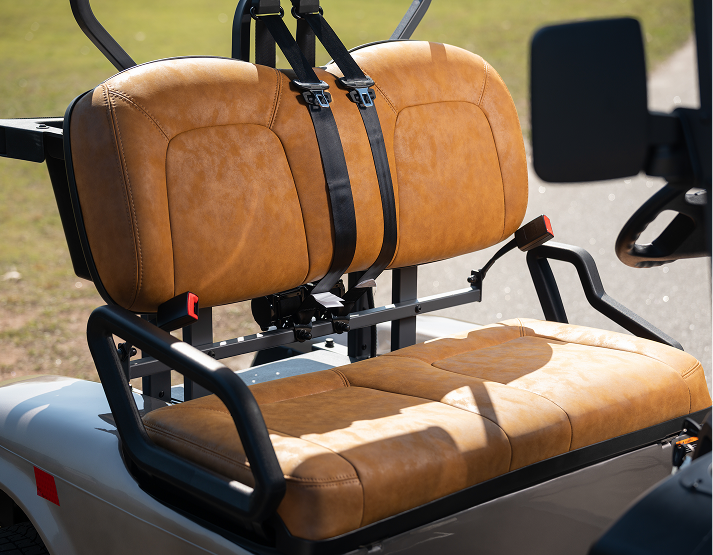

Spandex leather covered seats
Perfect for any Lifestyle
See the J-Plus, featuring the Addingtons STAR family
FAQs
What batteries does a J-Plus use?
What is the warranty on the J-Plus?
How do I clean my golf cart?
Is the J-Plus street-legal?
How fast does the STAR EV J-Plus go?
How many passengers can the J-Plus carry?
Does the J-Plus come with a lithium battery?
Where can I buy the J-Plus?
Is the J-Plus good for everyday use?
What features come standard on the J-Plus?
Does the J-Plus require a lot of maintenance?
Specifications
Dimensions
Overall dimensions
92” x 47” x 69” (2340 x 1200 x 1760 mm)
Wheel base
66” (1670 mm)
Ground Clearance
4” (100 mm)
Wheel Type
12*7
Tire Size
215/35-12
BODY & CHASSIS
Chassis
Steel
Body
Plastic front and rear body
roof
Plastic, injection molded
ROCKER PANELS
Aluminum
power
Batteries
Marxon 48V105A lithium battery
motor
HSLT AC 48V4KW
controller
MCX 350A controller
charger
Marxon 48V20A charger
performance
passengers
2
max speed
19.5 mph, or 25 mph if LSV
climbing grade
30% (full load)
turning radius
3.1 m (10.2 ft)
load range
55 km (34 miles) (full load)
maximum load
340 kGs (750 lbs)
net weight
490 kGs (1080 lbs)
brake system
Four wheel disc brake & EM parking brake
braking distance
4.5 m (15 ft)
rear end ratio
Gear ratio 12.31
steering & suspension
steering system
Rack & Pinion Steering
suspension
McPherson coil spring
Specifications are subject to change without notification
Dimensions
Overall dimensions
105” x 47” x 75” (2665 x 1200 x 1900 mm)
Wheel base
66” (1670 mm)
Ground Clearance
4” (100 mm)
Wheel Type
12*7
Tire Size
215/35-12
BODY & CHASSIS
Chassis
Steel
Body
Plastic front and rear body
roof
Plastic, injection molded
ROCKER PANELS
Aluminum
power
Batteries
Marxon 48V105A lithium battery
motor
HSLT AC 48V4KW
controller
MCX 350A controller
charger
Marxon 48V20A charger
performance
passengers
4
max speed
19.5 mph, or 25 mph if LSV
climbing grade
30% (full load)
turning radius
3.1 m (10.2 ft)
load range
55 km (34 miles) (full load)
maximum load
340 kGs (750 lbs)
net weight
490 kGs (1080 lbs)
brake system
Four wheel disc brake & EM parking brake
braking distance
4.5 m (15 ft)
rear end ratio
Gear ratio 12.31
steering & suspension
steering system
Rack & Pinion Steering
suspension
McPherson coil spring
Specifications are subject to change without notification
Dimensions
Overall dimensions
115” x 51.2” x 79” (2910 x 1300 x 2000 mm)
Wheel base
66” (1680 mm)
Ground Clearance
6” (150 mm)
Wheel Type
14*7
Tire Size
23*10-14
BODY & CHASSIS
Chassis
Steel
Body
Plastic front and rear body
roof
Plastic, injection molded
ROCKER PANELS
Aluminum
power
Batteries
Marxon 48V105A lithium battery
motor
HSLT AC 48V4KW
controller
MCX 350A controller
charger
Marxon 48V20A charger
performance
passengers
4
max speed
19.5 mph, or 25 mph if LSV
climbing grade
30% (full load)
turning radius
4 m (13 ft)
load range
50 km (31 miles) (full load)
65 km (40 miles) (no-load)
maximum load
340 kGs (750 lbs)
net weight
540 kGs (1190 lbs)
brake system
Four wheel disc brake & EM parking brake
braking distance
5m (16 ft)
rear end ratio
Gear ratio 14:1
steering & suspension
steering system
Rack & Pinion Steering
suspension
McPherson coil spring
Specifications are subject to change without notification
Dimensions
Overall dimensions
120“ x 47” x 75” (3070 x 1200 x 1900 mm)
Wheel base
97” (2460 mm)
Ground Clearance
4” (100 mm)
Wheel Type
12*7
Tire Size
215/35-12
BODY & CHASSIS
Chassis
Steel
Body
Plastic front and rear body
roof
Plastic, injection molded
ROCKER PANELS
Aluminum
power
Batteries
Marxon 48V 105Ah Lithium Battery
motor
HSLT AC 48V 5kW
controller
MCX 450A Controller
charger
Marxon 48V 20A Charger
performance
passengers
4
max speed
19.5 mph, or 25 mph if LSV
climbing grade
25% (full load)
turning radius
4.5 m ( 15ft)
load range
50 km (full load) (31 miles)
maximum load
510 kGs (1124 lbs)
net weight
580 kGs (1279 lbs)
brake system
Four wheel disc brake & EM parking brake
braking distance
4.5 m (15 ft)
rear end ratio
Gear ratio 12.31
steering & suspension
steering system
Rack & Pinion Steering
suspension
McPherson coil spring
Specifications are subject to change without notification
Dimensions
Overall dimensions
127” x 49” x 81” (3230 x 1245 x 2050 mm)
Wheel base
97” (2460 mm)
Ground Clearance
6” (150 mm)
Wheel Type
14*7
Tire Size
23*10-14
BODY & CHASSIS
Chassis
Steel
Body
Plastic front and rear body
roof
Plastic, injection molded
ROCKER PANELS
Aluminum
power
Batteries
Marxon 48V105A lithium battery
motor
HSLT AC 48V4KW
controller
MCX 350A controller
charger
Marxon 48V20A charger
performance
passengers
4
max speed
19.5 mph, or 25 mph if LSV
climbing grade
25% (full load)
turning radius
5m (16 ft)
load range
50 km (full load) 30 miles
65 km (no-load) 40 miles
maximum load
510 kGs (1124 lbs)
net weight
580 kGs ( 1278 lbs)
brake system
Four wheel disc brake & EM parking brake
braking distance
5m (16 ft)
rear end ratio
Gear ratio 14:1
steering & suspension
steering system
Rack & Pinion Steering
suspension
McPherson coil spring
Specifications are subject to change without notification
Dimensions
Overall dimensions
134” x 47” x 75” (3400 x 1200 x 1900 mm)
Wheel base
97” (2460 mm)
Ground Clearance
4” (100 mm)
Wheel Type
12*7
Tire Size
215/35-12
BODY & CHASSIS
Chassis
Steel
Body
Plastic front and rear body
roof
Plastic, injection molded
ROCKER PANELS
Aluminum
power
Batteries
Marxon 48V 105Ah Lithium Battery
motor
HSLT AC 48V 5kW
controller
MCX 450A Controller
charger
Marxon 48V20A charger
performance
passengers
6
max speed
19.5 mph, or 25 mph if LSV
climbing grade
25% (full load)
turning radius
4.5m (15 ft)
load range
50 km (full load) (31 miles)
maximum load
510 kGs (1124 lbs)
net weight
610 kGs (1345 lbs)
brake system
Four wheel disc brake & EM parking brake
braking distance
5m (16.4 ft)
rear end ratio
Gear ratio 12.31
steering & suspension
steering system
Rack & Pinion Steering
suspension
McPherson coil spring
Specifications are subject to change without notification
Dimensions
Overall dimensions
146” x 49” x 81” (3705 x 1245 x 2050 mm)
Wheel base
97” (2460 mm)
Ground Clearance
17.3” (440 mm)
Wheel Type
14*7
Tire Size
23*10-14
BODY & CHASSIS
Chassis
Steel
Body
Plastic front and rear body
roof
Plastic, injection molded
ROCKER PANELS
Aluminum
power
Batteries
Marxon 48V 105Ah Lithium Battery
motor
HSLT AC 48V 5kW
controller
MCX 450A Controller
charger
Marxon 48V 20A Charger
performance
passengers
6
max speed
19.5 mph, or 25 mph if LSV
climbing grade
25% (full load)
turning radius
5m (16 ft)
load range
50 km (full load) 30 miles
65 km (no-load) 40 miles
maximum load
510 kGs (1124 lbs)
net weight
620 kGs (1367 lbs)
brake system
Four wheel disc brake & EM parking brake
braking distance
5m (16 ft)
rear end ratio
Gear ratio 14:1
steering & suspension
steering system
Rack & Pinion Steering
suspension
McPherson coil spring
Specifications are subject to change without notification
Dimensions
Overall dimensions
152” x 47.6” x 73.4” (3860 x 1210 x 1860 mm)
Wheel base
124” (3150 mm)
Ground Clearance
4.8” (122 mm)
Wheel Type
14*7
Tire Size
23*10-14
BODY & CHASSIS
Chassis
Steel
Body
Plastic front and rear body
roof
Plastic, injection molded
ROCKER PANELS
Aluminum
power
Batteries
(8) 6 Volt deep cycle, 160 Ah, 210 Ah
motor
5 kW QDS AC Motor
controller
450A AC Controller
charger
48V 20A Charger
performance
passengers
6
max speed
19.5 mph, or 25 mph if LSV
climbing grade
25% (full load)
turning radius
6 m (19.7 ft)
load range
50 km (full load) 30 miles
65 km (no-load) 40 miles
maximum load
645 kgs (1422 lbs)
brake system
Four wheel disc brake & EM parking break
steering & suspension
steering system
Rack & Pinion Steering
FRONT suspension
Double swing arm independent coil over shock
REAR suspension
Longitudinal leaf spring + shock absorption
Specifications are subject to change without notification
